Integrate Mapbox With Odoo

Technical

We are changing the way people move around the cities and explore the world. Every actions and experience are updated on various social platforms at the earliest. The technologies like mapbox enable you to add location features like maps, search and navigation into any experience you create in miscellaneous platforms.

Mapbox is one of the largest providers of custom online maps/ location data platform for web applications and mobiles. Integrating such technology to Odoo can definitely take the application to greater functionalities and technicalities.

It is indeed a great deal and this blog helps you to know how mapbox is integrated to Odoo ERP. The steps go as below:

Creating mapbox access token

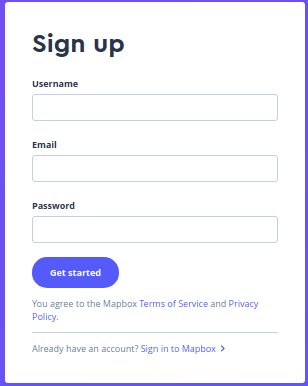

> To get a mapbox access token, firstly make an account in mapbox

> https://www.mapbox.com/signup/

integrate-mapbox-with-odoo-1

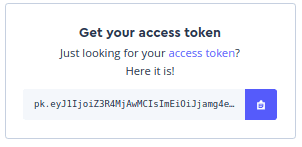

After sign in, you get an access key like below.

integrate-mapbox-with-odoo-2

How to implement in Odoo

Insert the mapbox CDN link in the XML file CSS and javascript

<script src='https://api.tiles.mapbox.com/mapbox-gl-js/v0.44.1/mapbox-gl.js'/>
<link href='https://api.tiles.mapbox.com/mapbox-gl-js/v0.44.1/mapbox-gl.css' rel='stylesheet'/>

Load the custom javascript  and CSS from your module, let say as map.css and map.js

<link href='/demo_map/static/src/css/map.css' rel='stylesheet'/>
<script src='/website_location/static/src/js/map.js'/>

We can easily place the map in the odoo webpage  using the div with map id

<div id='map'/>

Sample code mapbox.css

body {
  margin: 0;
  padding: 0;
}
#map {
  position: absolute;
  top: 0;
  bottom: 0;
  width: 100%;
}
Sample code for JavaScript

mapboxgl.accessToken = 'YOUR-ACCESS-TOKEN-HERE';
var map = new mapboxgl.Map({
  container: 'map', // container id
  style: 'mapbox://styles/mapbox/streets-v8', //stylesheet location
  center: [-74.50, 40], // starting position
  zoom: 9 // starting zoom
});

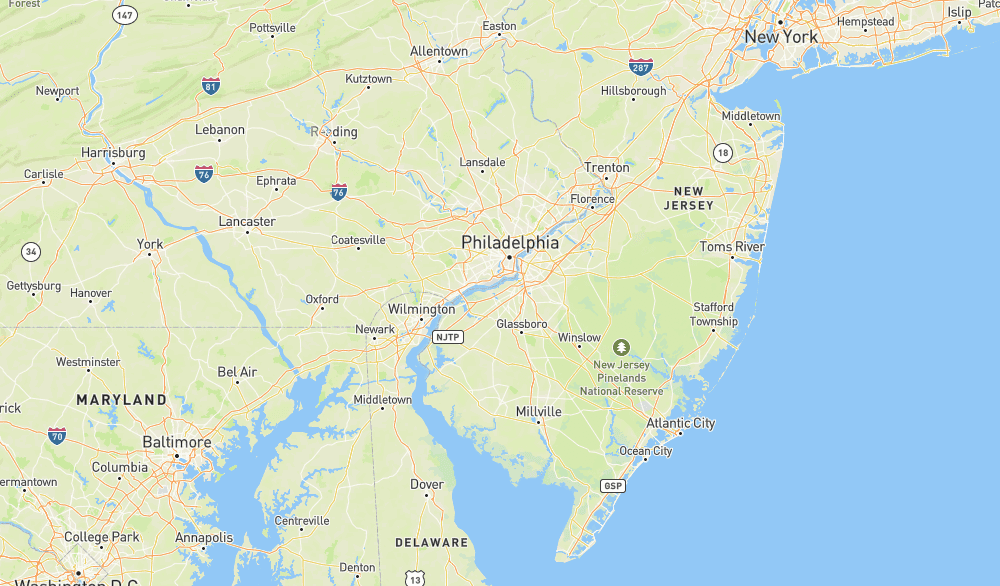

This gets you with a result like this

integrate-mapbox-with-odoo-3


> One can also enable the advanced features like below by integrating mapbox into Odoo. Have a look at the additional benefits you can derive with.

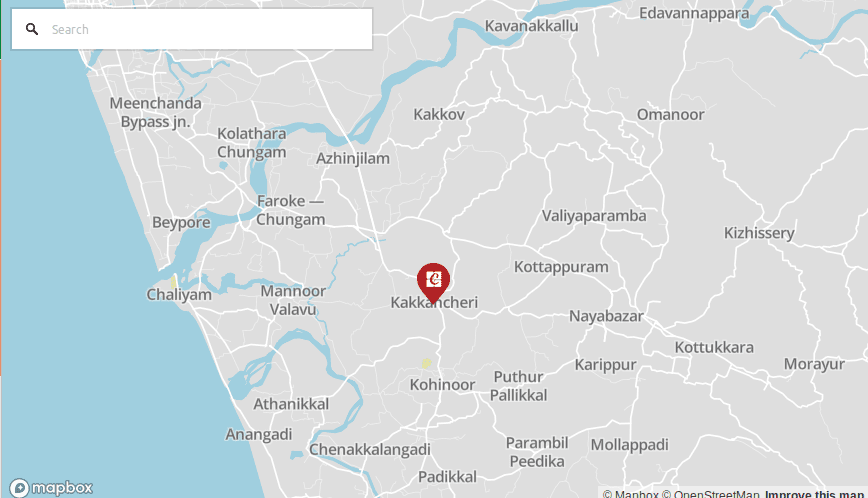

Marking locations

integrate-mapbox-with-odoo-4


> We can add custom markers according to your requirement

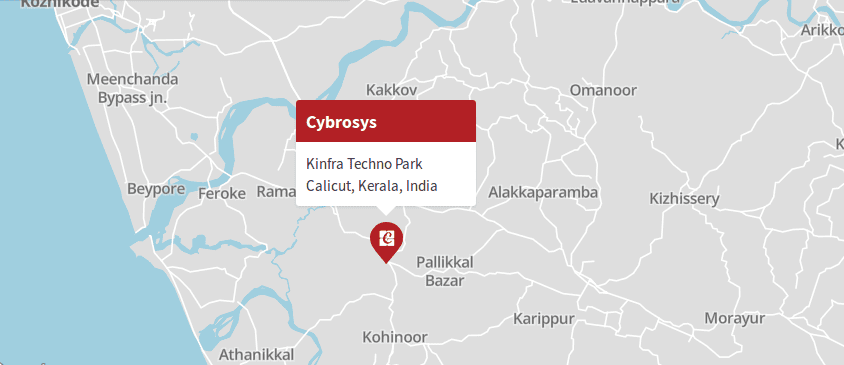

Making popup with company info

integrate-mapbox-with-odoo-5

> We can include company details like company name, contact within popup in the marker

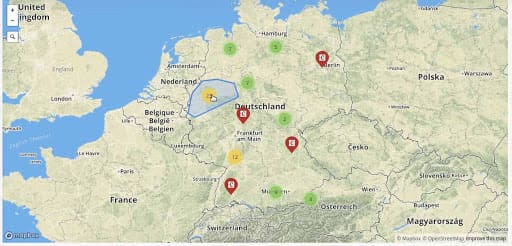

Map cluster

integrate-mapbox-with-odoo-6

> If we have a number of markers on the map, we need to add clustering on the map.
> Each group will display the number of points inside the map.

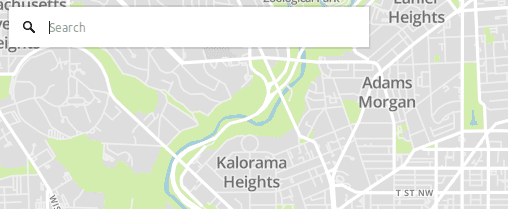

Geocoding

integrate-mapbox-with-odoo-7

> We can add custom geocoding options. We can also limit the geocoding limit based on a country or we can use a box

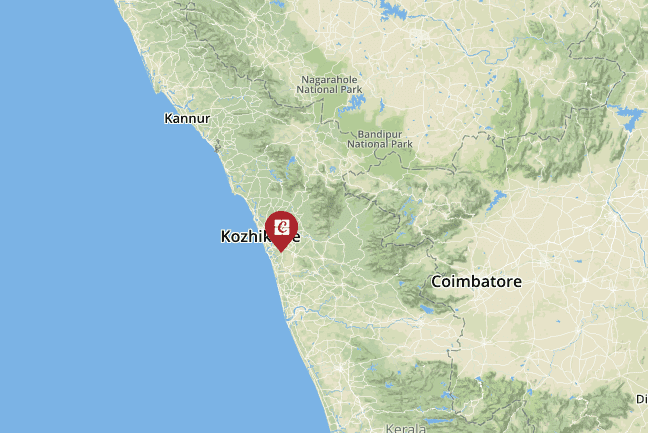

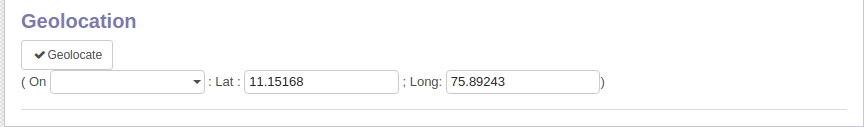

Adding partner location from odoo

integrate-mapbox-with-odoo-8


> We can add the partner location using the coordinate value,  based on location. It will directly get displayed on the map.



integrate-mapbox-with-odoo-9

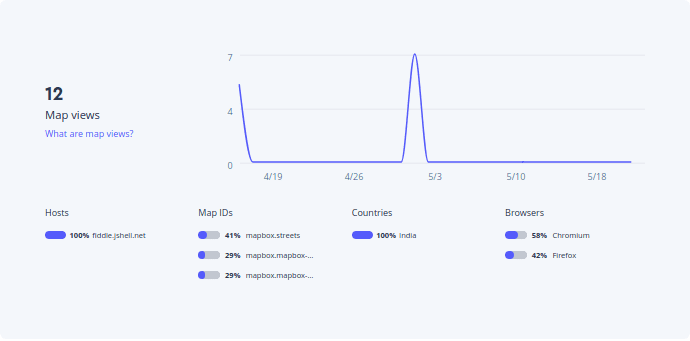

Statics

integrate-mapbox-with-odoo-10

> We can also monitor the number of map views and geocoding request using mapbox account.

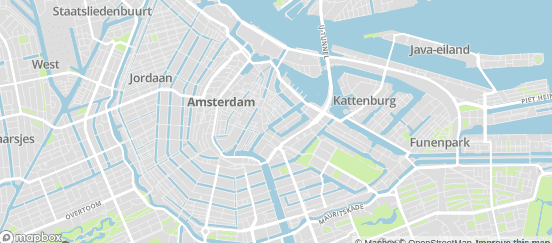

Mapbox styles
This application also features the facility to select different styles of the map according to your requirement.

integrate-mapbox-with-odoo-11

Basic

integrate-mapbox-with-odoo-12

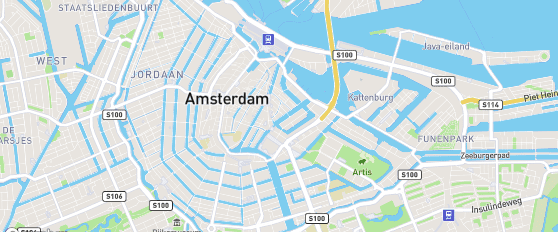

Street

integrate-mapbox-with-odoo-13

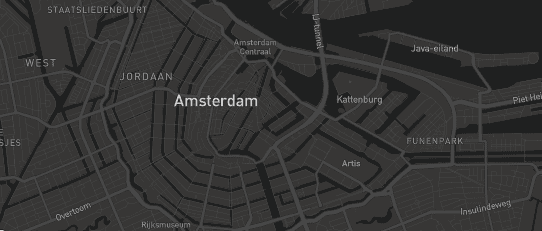

Dark
