Odoo 10 Attendance Kiosk Mode

A beautiful and relevant feature which describes how Odoo is more easy to use and how they considered making more user-friendly options. Well, here we are discussing and let's see the overall working of kiosk mode. This is mainly dealing with the user’s attendance and let’s check the attendance marking using the badges, manually and yes by using the pin.

First of all, don't forget to install Attendances module from the Odoo apps



Using with Badges.

We can make the attendance entry using the employee badges.

So we have to use an equipment scanner to fetch the unique id and it can be set on employees form under HR Settings.


Employee form to fill the badge id.


odoo-10-attendance-kiosk-mode-1-cybrosys



Here we just scanned the badge to get the unique id:



odoo-10-attendance-kiosk-mode-2-cybrosys

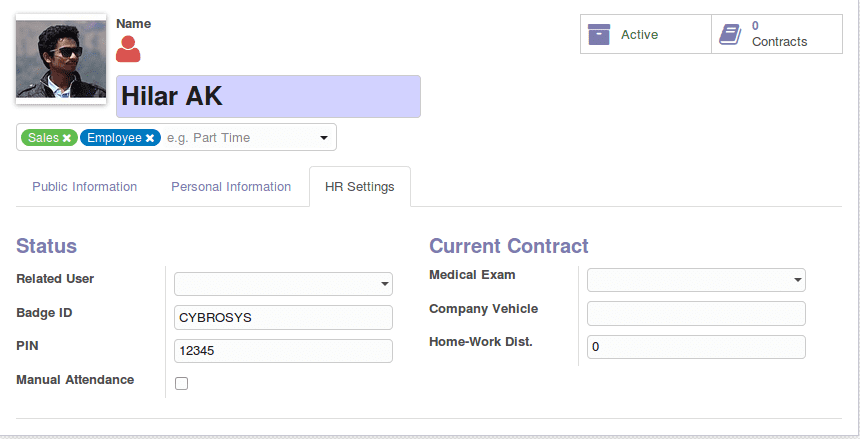

The employee form should fill with the id like

odoo-10-attendance-kiosk-mode-3-cybrosys

Here the barcode id is CYBROSYS now. This gets saved and can be used for logging attendance.

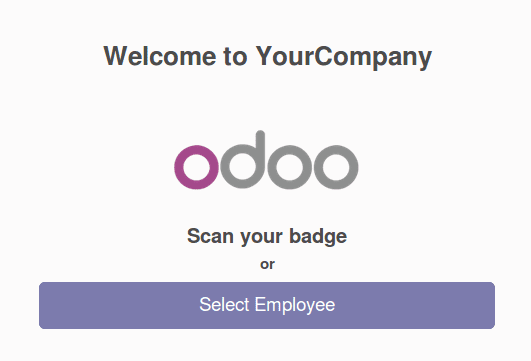

Let's enter into the kiosk mode to know what happens next. You can see a menu under Manage Attendance -> Kiosk Mode.



odoo-10-attendance-kiosk-mode-4-cybrosys

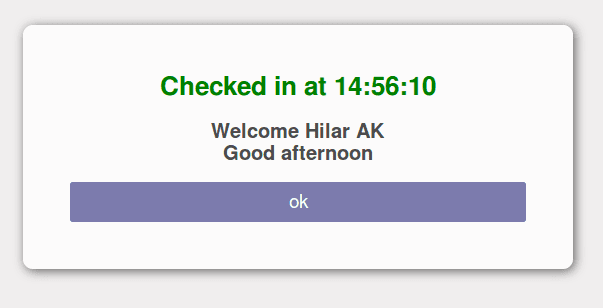

You can select an employee manually or simply scan your badge

odoo-10-attendance-kiosk-mode-5-cybrosys

Manual By selecting Employee

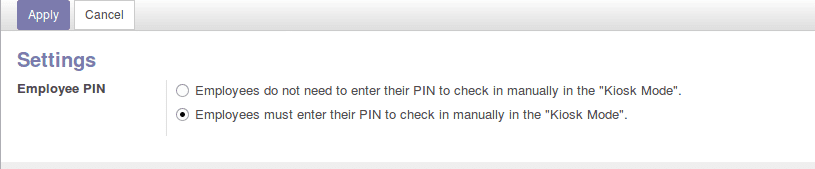

We can also use the kiosk mode to enable the manual attendance logging by selecting the employee.  Here to enable the privacy and misuse of loggings Odoo has the feature authentication by unique pin. This has to be enabled extra under Attendance -> Configurations.


odoo-10-attendance-kiosk-mode-6-cybrosys

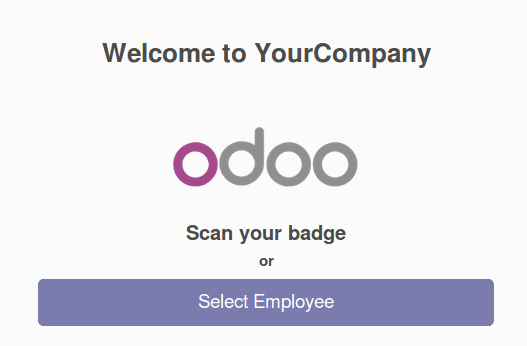

Let’s try to log attendance manually in kiosk mode


odoo-10-attendance-kiosk-mode-7-cybrosys

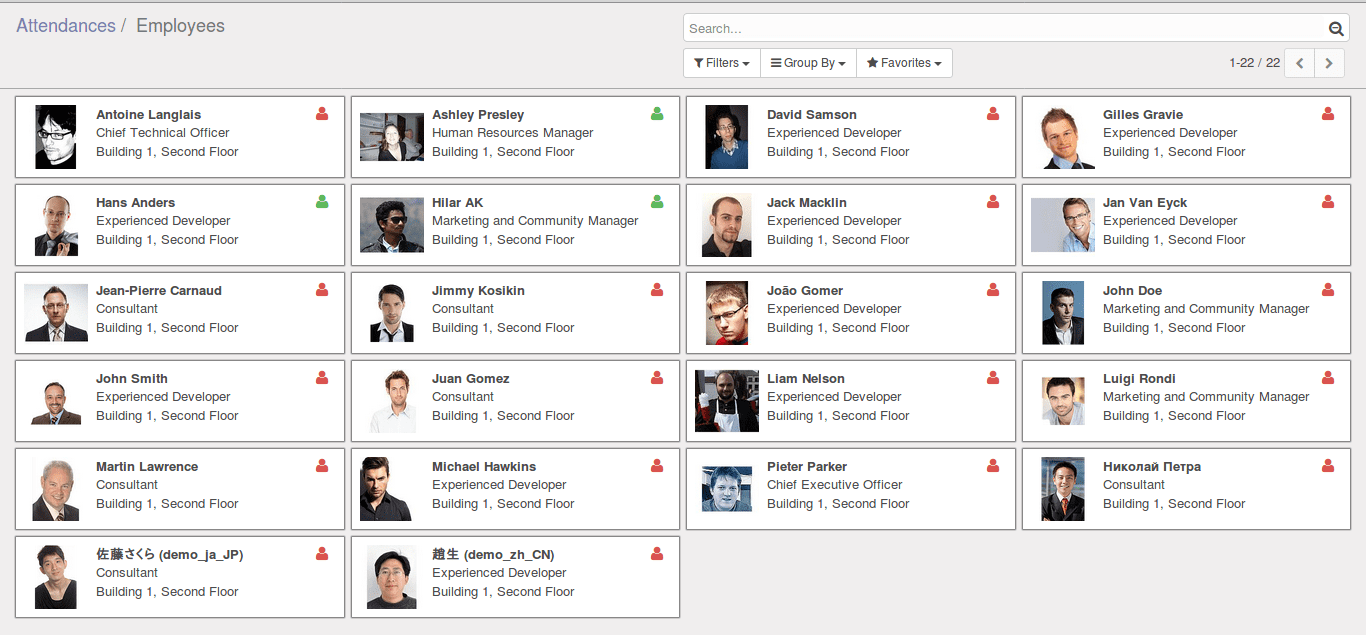

Click on select Employee Button. It will show the employees in a form.

odoo-10-attendance-kiosk-mode-8-cybrosys

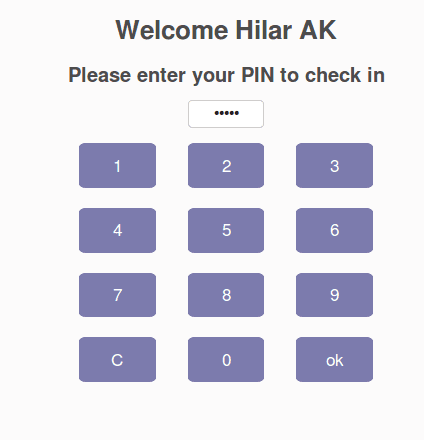

Select the proper employee.


odoo-10-attendance-kiosk-mode-9-cybrosys

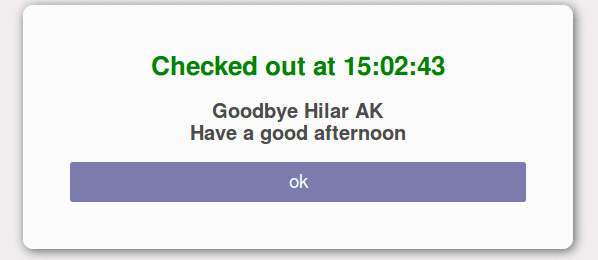

Which gives the interface to manually enter the pin, which we already set in employee form. The valid response will like

odoo-10-attendance-kiosk-mode-10-cybrosys

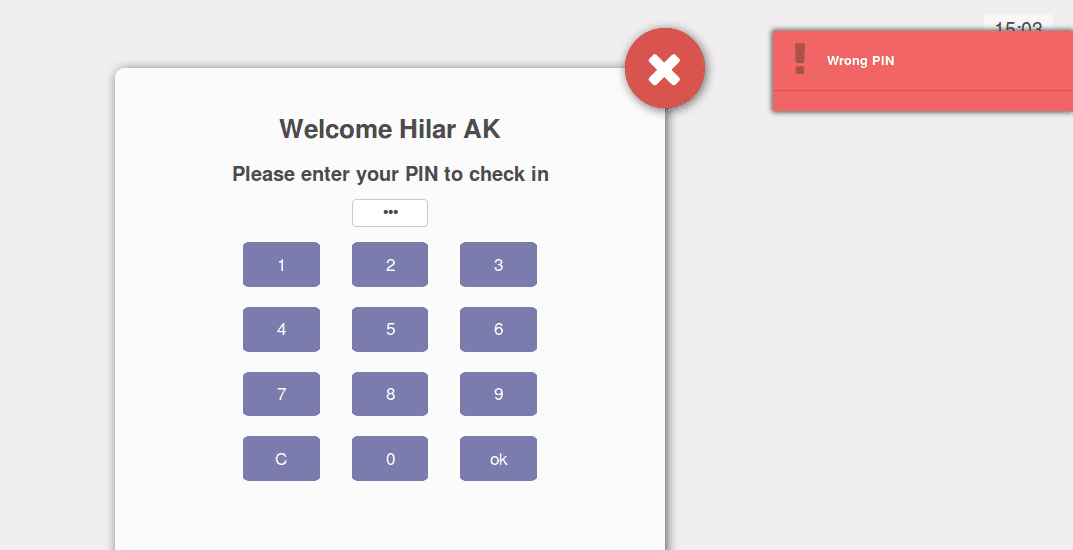

If I try to enter the Wrong pin will throw

odoo-10-attendance-kiosk-mode-11-cybrosys

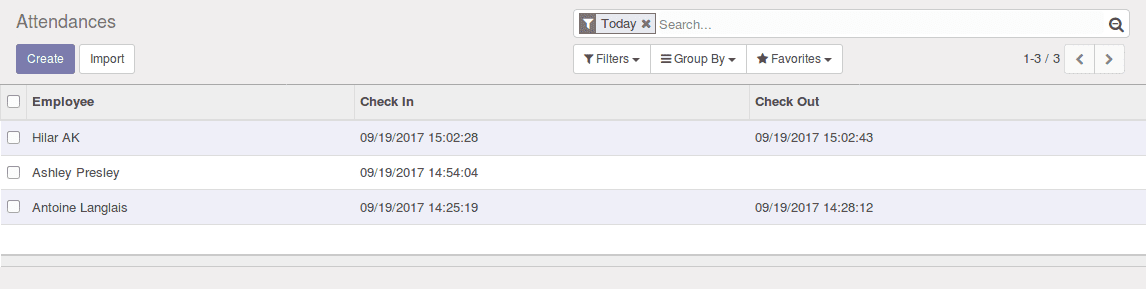

A good feature for Odoo to make the employee Attendance logs much easier and this will update the backend entries as

odoo-10-attendance-kiosk-mode-12-cybrosys
