Chapter 19 - Odoo 15 Development Book

Managing Kanban Stages

In Odoo, the Kanban view helps to manage workflows more easily. In the Kanban view, there will be columns, corresponding to each stage. The Kanban view allows users to manage records between each stage easily.

Let's create a Kanban view for the custom module mobile_service_shop and we will group Kanban cards by stage.

1. Add a Kanban view for the mobile_service_shop module as follows.

<record id="service_request_view_kanban" model="ir.ui.view">
  <field name="name">mobile.service.kanban</field>
  <field name="model">mobile.service</field>
  <field name="arch" type="xml">
  <kanban default_group_by="service_state">
    <field name="service_state"/>
    <templates>
      <t t-name="kanban-box">
       <div class="oe_kanban_global_click">
          <div class="oe_kanban_content">
             <div class="oe_kanban_card">
           <div>
           <b>
          <field name="name"/>
          </b>
       </div>
       <div class="text-muted">
          <field name="person_name"          widget="res_partner_many2one"
         context="{'res_partner_search_mode': 'customer'}"/>
              </div>
            </div>
         </div>
        </div>
       </t>
     </templates>
   </kanban>
 </field>
</record>

2. Add kanban in the action as follows

<record id="action_mobile_service_request" model="ir.actions.act_window">
  <field name="name">Service Request</field>
  <field name="res_model">mobile.service</field>
  <field name="view_mode">tree, form, kanban, pivot,      graph</field>
  <field name="search_view_id"  ref="mobile_service_request_search_view"/>
  <field name="view_id" ref="mobile_service_request_tree_view"/>
  <field name="help" type="html">
    <p class="oe_view_nocontent_create">
      Click to Create a New Record.
    </p>
  </field>
</record>

3. Add the _group_expand_stages() method inside mobile.service model.

def _group_expand_states (self, states, domain, order):
  return [key for
  key, val in type(self).service_state.selection]
service_state = fields. Selection ([('draft', 'Draft'), ('assigned', 'Assigned'),
('completed', 'Completed'), ('returned', 'Returned'),
('not_solved', 'Not solved')],
string='Service Status', group_expand='_group_expand_states'
default='draft', track_visibility='always')

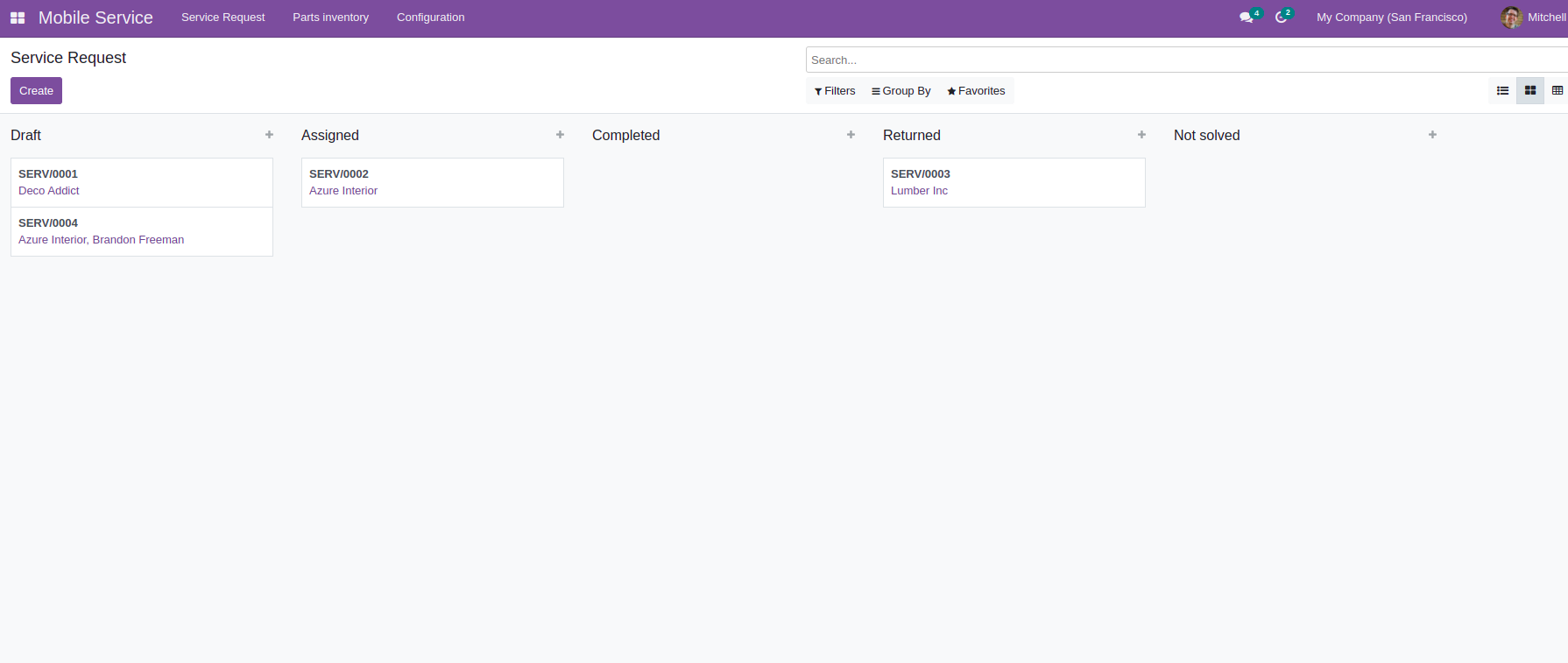

5. After these steps, restart and upgrade the module. Then the Kanban view of our custom module will be as shown below.

odoo-development-book

Progress Bar in Kanban View

In Kanban, we can add a progress bar on the top of the columns based on the fields. We can add four colors to the progress bar for each value in a field.

To display the progress bar, we need to add a progress bar tag inside the kanban view definition like below.

<progressbar field="level" colors='{"high": "success", "medium": "warning", "low": "danger"}" />

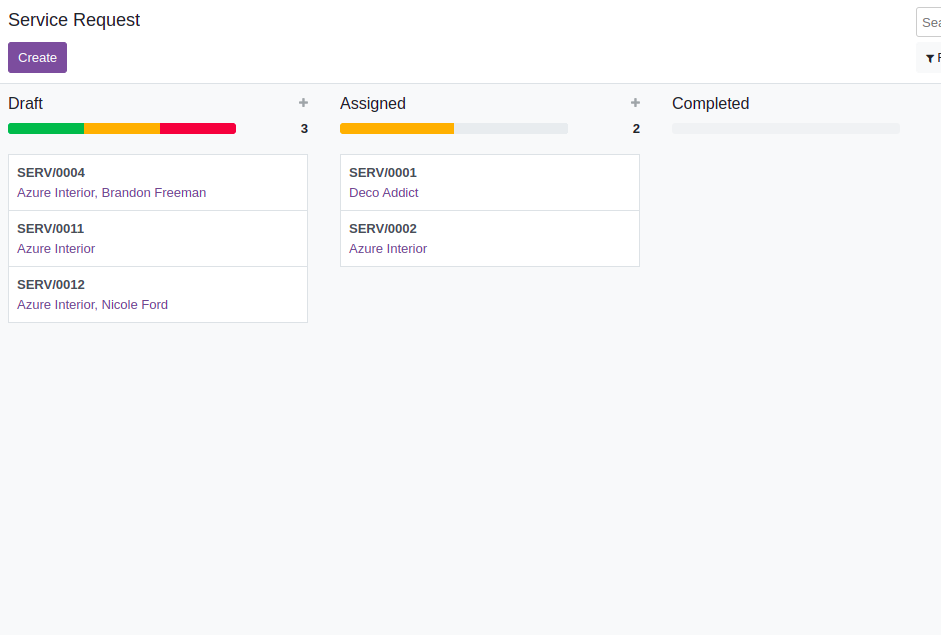

Restart the service and upgrade the module. Then progress bar will be displayed in the Kanban view as below.

odoo-development-book

By default, on the side of the progress bar, we can see the total number of records in each column. Also by placing a mouse pointer in the progress bar, we can see the total number of records in the corresponding state.

We can also display the sum of the integer or float field. To do this, we need to add the sum_field attribute with the field value, such as sum_field="field_name".
