Odoo Google Drive Backup with Deja Dup

Technical

The Deja Dup backup tool is a default desktop app in Linux which is not that widely used among the Linux users. Deja Dup is able to schedule file, folder and even entire system backups directly to Google Drive without any complicated commands or settings.

We know, Google Drive is a free cloud storage service from Google that allows to store and share files in the cloud for free. Each google user has free 15GB storage space in google drive and further additional space can be purchased from Google for a relatively small fee.

In the case of Odoo, we require two backup tools.

1) Any odoo backup apps ( It must backup zip file to a specific folder)
I recommend to use auto_backup v11 app. It can be downloaded from odoo apps https://apps.odoo.com/apps/modules/11.0/auto_backup/

2) Deja Dup Backup Tool
Deja is preinstalled on the Ubuntu desktop by default. If you don’t find this in your Ubuntu system, run the command from the terminal.

sudo apt install deja-dup

Odoo backup Setup

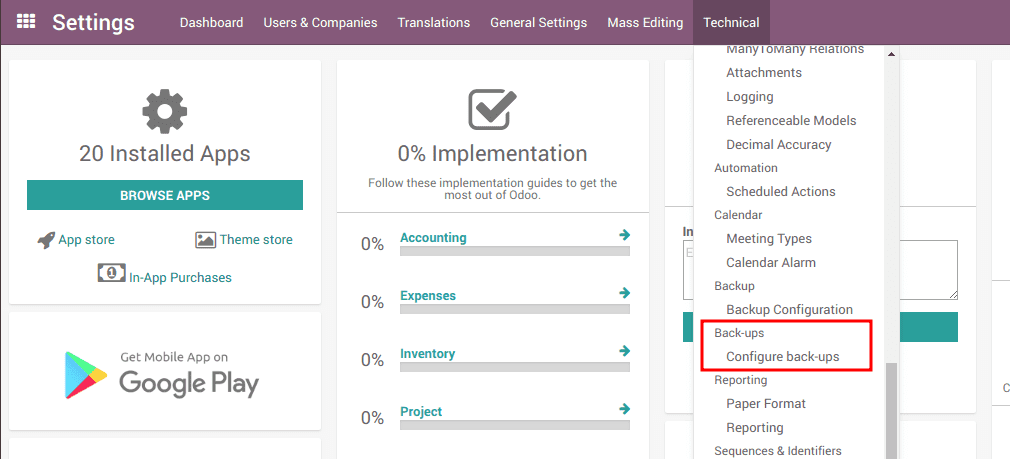

After installing auto_backup app from odoo app store, go to Technical > Back-ups > Configure back-ups

odoo-google-drive-backup-with-deja-dup-1-cybrosys

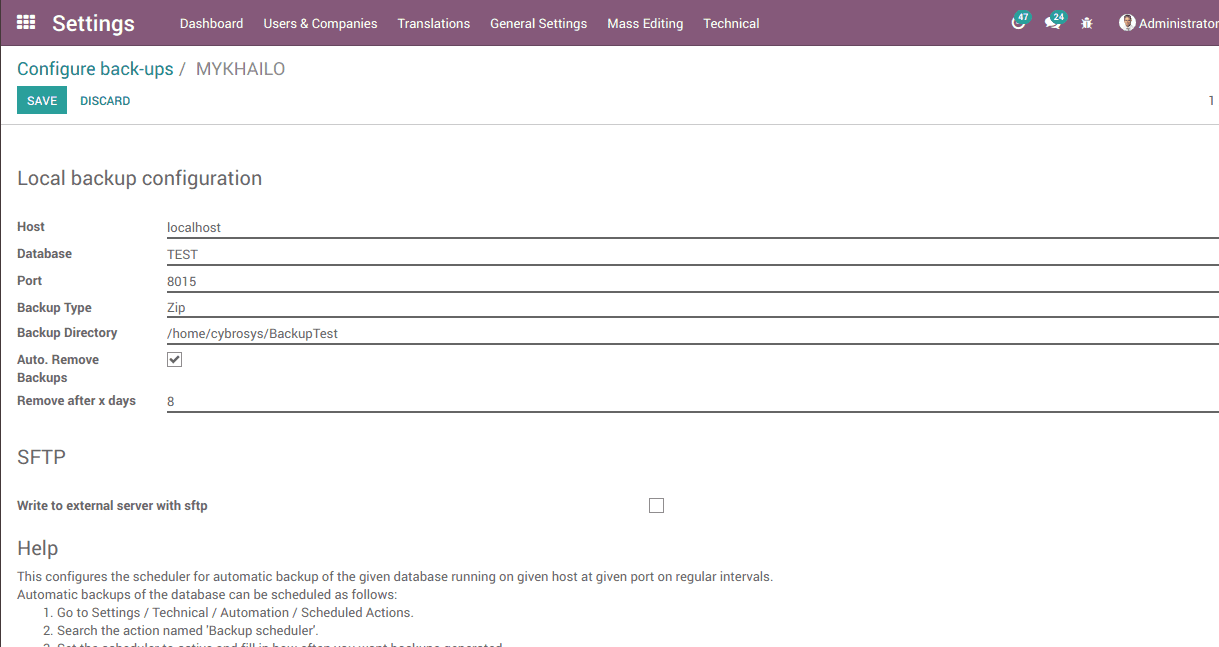

Add necessary details for backup configuration such as Host, Database, port, Backup Type, Backup Directory , etc

odoo-google-drive-backup-with-deja-dup-2-cybrosys

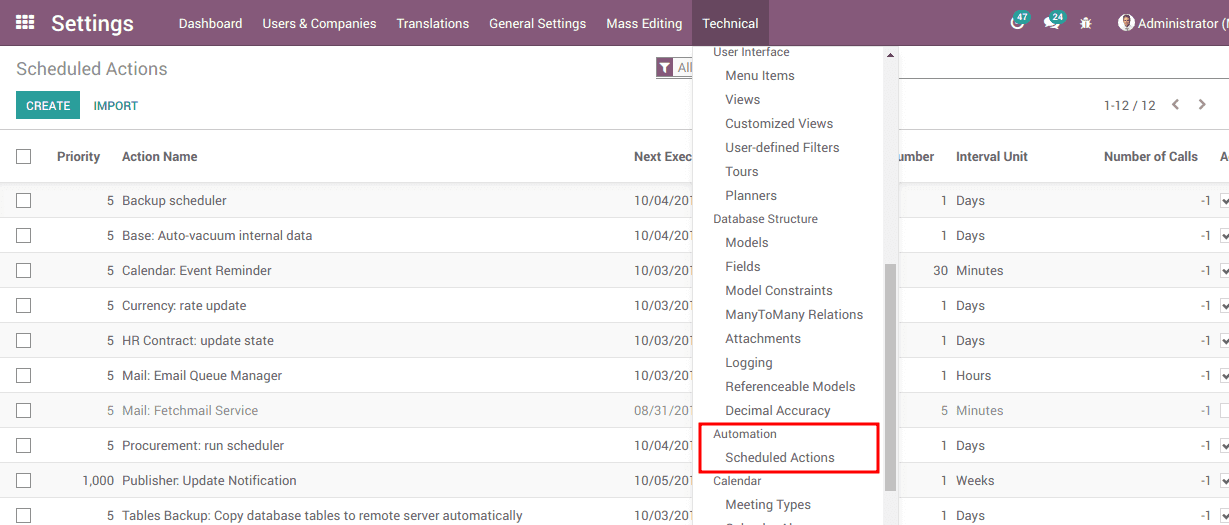

After saving, go to Technical > Automation > Scheduled Actions

odoo-google-drive-backup-with-deja-dup-3-cybrosys

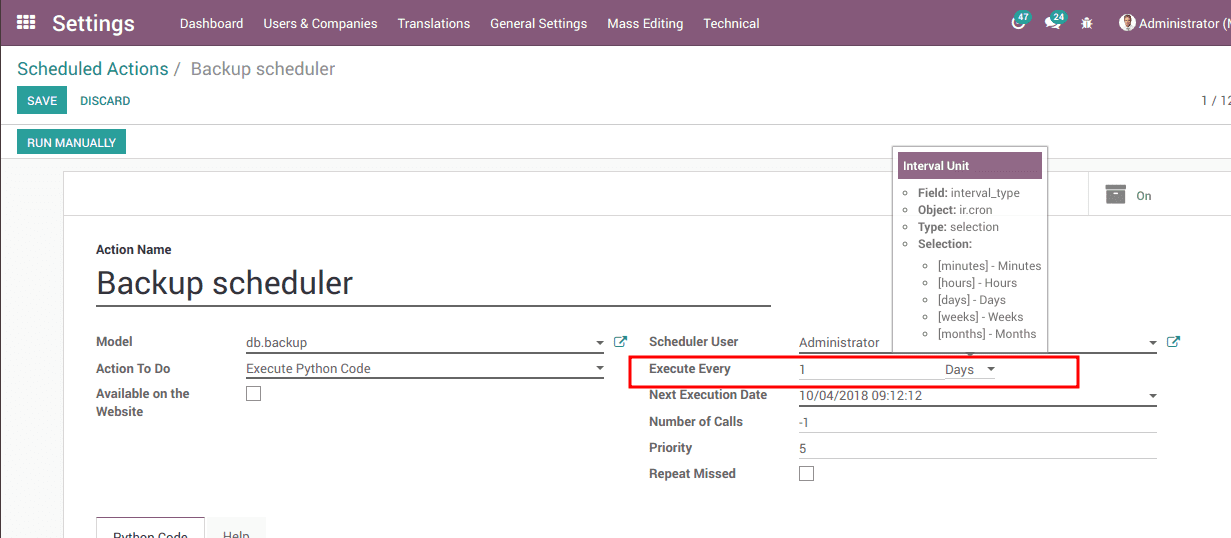

From here you can configure backup intervals ( minutes, hour, day, week or months).

odoo-google-drive-backup-with-deja-dup-4-cybrosys

By clicking Run Manually button, a new backup file generates in the target folder.

Deja Dup Backup Tool Setup

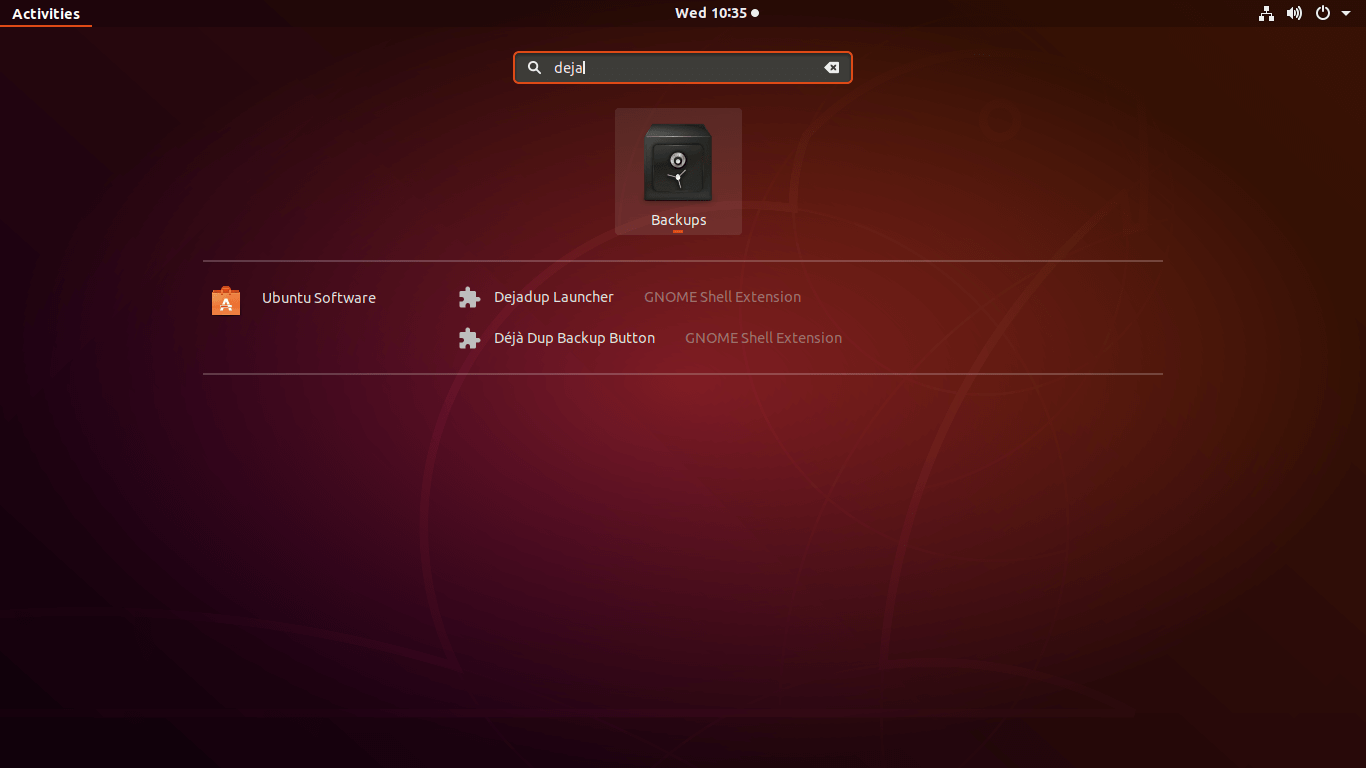

Open Deja Dup Tool

odoo-google-drive-backup-with-deja-dup-5-cybrosys

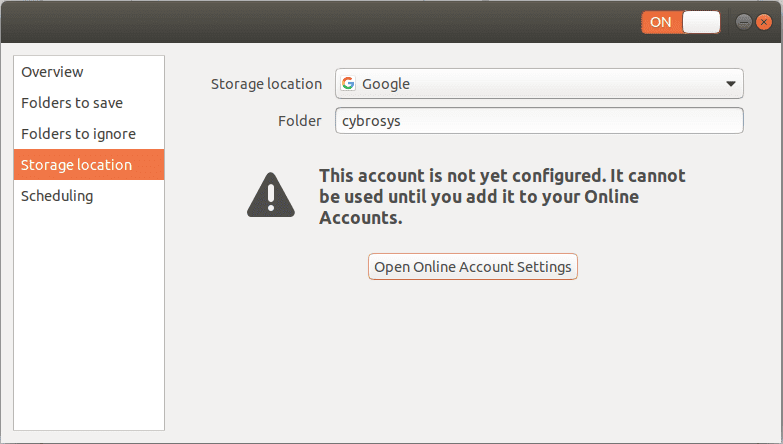

Configure your google account on Storage Locations (Click Open online Settings)

odoo-google-drive-backup-with-deja-dup-6-cybrosys

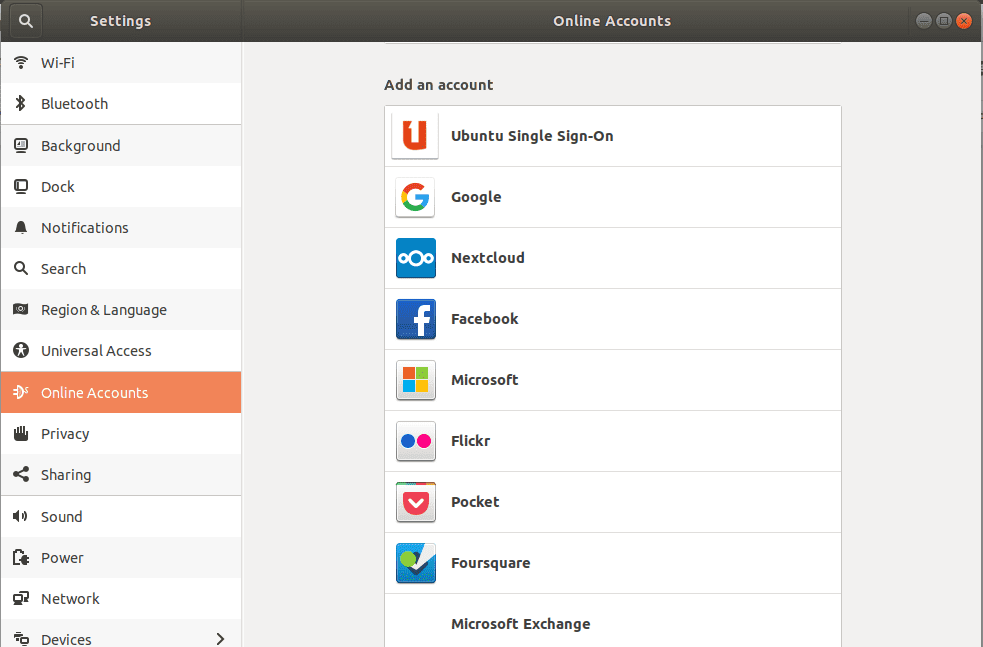

Add your account details

odoo-google-drive-backup-with-deja-dup-7-cybrosys

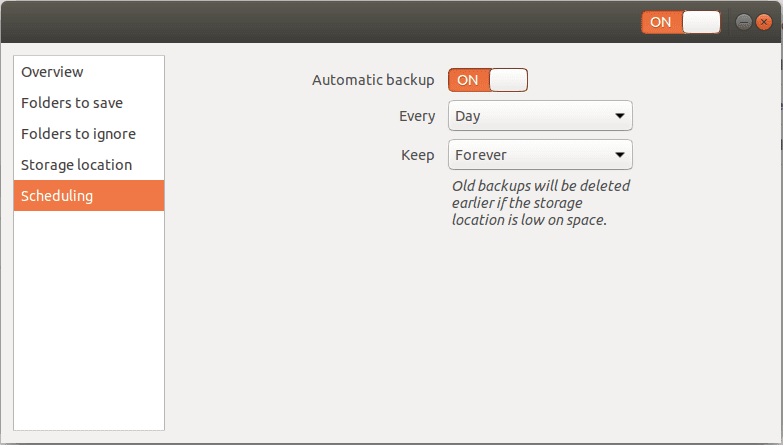

After account configuration, select the Scheduling options like interval and keeping the policy.

odoo-google-drive-backup-with-deja-dup-8-cybrosys

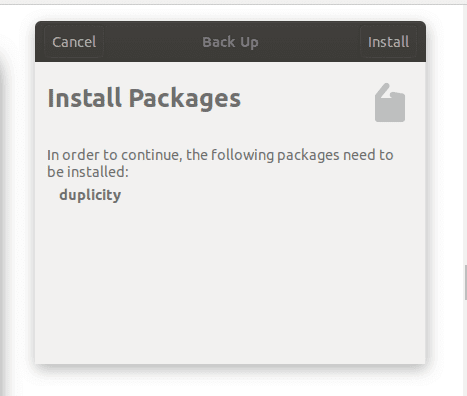

After this, a popup window appears for installing a package called duplicity. Duplicity is used to back directories by producing encrypted tar-format volumes and uploading it to a remote or local file server. Just install the package.

odoo-google-drive-backup-with-deja-dup-9-cybrosys

After finishing the installation add folders you want to save. Click ‘+’ button to add or click ‘-’ button to remove folders. Also, you have an option to add folders to ignore (Not mandatory).

odoo-google-drive-backup-with-deja-dup-10-cybrosys

If everything is ok, you can see the overview buttons active.

odoo-google-drive-backup-with-deja-dup-11-cybrosys

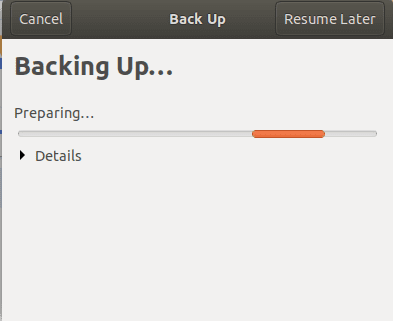

By clicking Back Up Now button, you can test the working.

odoo-google-drive-backup-with-deja-dup-12-cybrosys

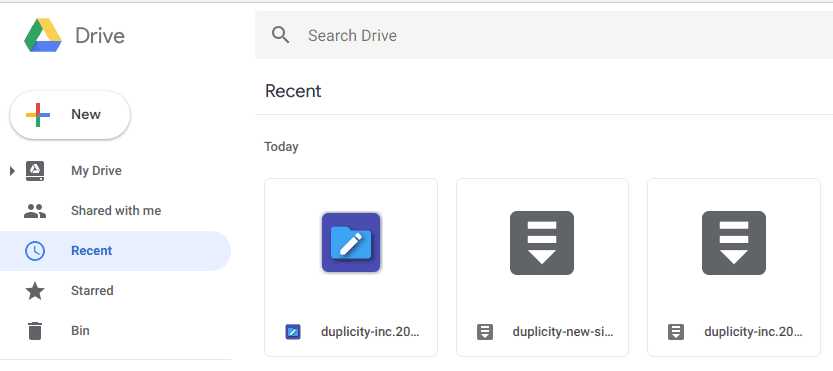

When you finish the backup, you can see these files on your google drive.

odoo-google-drive-backup-with-deja-dup-13-cybrosys
Your backup succeeds.

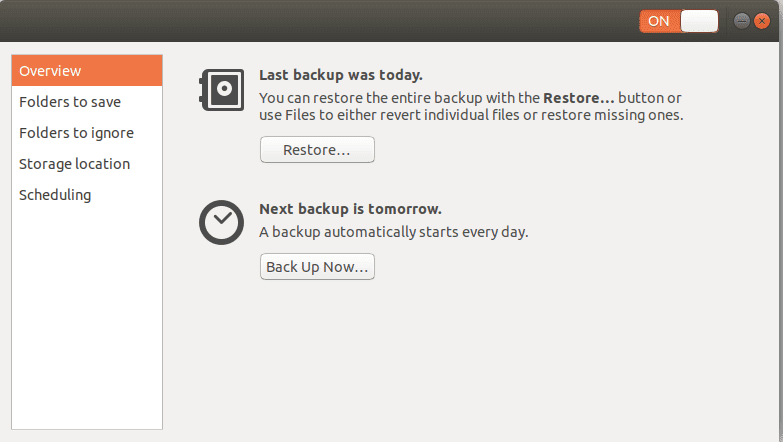

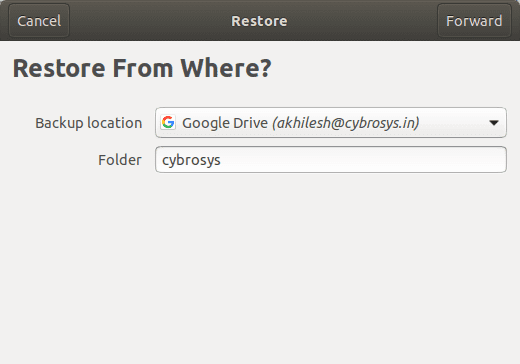

When you want to restore the backups to the computer, just click the Restore button from Deja

odoo-google-drive-backup-with-deja-dup-14-cybrosys

odoo-google-drive-backup-with-deja-dup-15-cybrosys

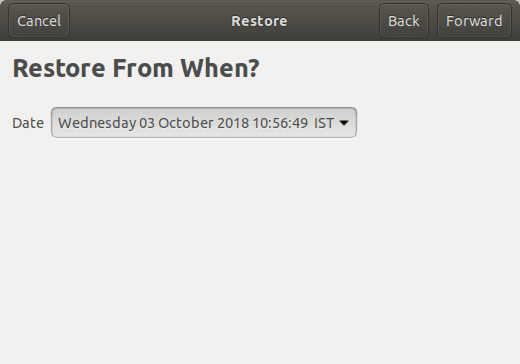

Restore backup from a particular date to a particular folder. Old backups will be deleted earlier if the storage location is low on space.

odoo-google-drive-backup-with-deja-dup-16-cybrosys

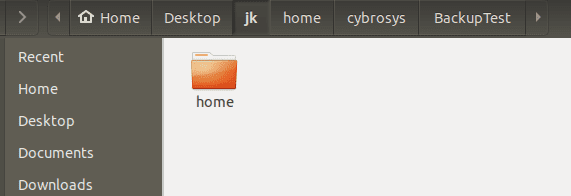

After finishing the restore, In the target folder, a home older will appear. You can find your backup folder inside

odoo-google-drive-backup-with-deja-dup-17-cybrosys


If you need any assistance in odoo, we are online, please chat with us.
