Development Book V17: Adding Menus and Views

The key advantage of Odoo is that menus and sub-menus can be developed using both code and UI. Odoo has become more user-friendly as a result.

Let us construct a menu using XML or code.

Create a view directory on the visa module, which we've already done.

To add a view, we must first add an XML file providing its definition to the module.

1. Create an XML file called visa_application.xml to store the data records for the UI Views.

2. Add XML file to the data in the __manifest__.py

'data': ['views/visa_application.xml'],


                  'data': ['views/visa_application.xml'],



3. Add an action for the view.



                <record id="record_action" model="ir.actions.act_window">
                <field name="name">Visa Application</field>
                <field name="type">ir.actions.act_window</field>
                <field name="res_model">visa.application</field>
                <field name="view_mode">tree,form</field>
                <field name="help" type="html">
                    <p class="o_view_nocontent_smiling_face">
                        Create a new record!
                    </p>
                </field>
            </record>





name - Name of the action.

res_model - the name of the model.

view mode – Various view modes. By the preceding action, this mode must be defined.

view_id - when the action is invoked, the default view that must be loaded is view id.

4. Make a menu item visible to users by adding it to the visa_application.xml file.





                    <menuitem id="parent_menu_root"
name="Visa"
sequence="6"/>
<menuitem id="menu_id"
name="Visa Application"
parent="parent_menu_root"
action="record_action"
sequence="10"/>

id - id of the menu

name - Name of the menu.

sequence - Sequence in which menu is to be displayed.

action - id of the window action created in the previous step is given here.

parent - the identifier for the parent menu item.

5. Include a view in the file





    <menuitem id="parent_menu_root"<br />
name="Visa"<br />
sequence="6"/><br />
<menuitem id="menu_id"<br />
name="Visa Application"<br />
parent="parent_menu_root"<br />
action="record_action"<br />
sequence="10"/><br />

name: This is used to identify the view.

model: Determine the target model.

arch: This is the architecture view, which defines its structure.


    <record id="visa_application_tree" model="ir.ui.view">
<field name="name">visa.application.tree</field>
<field name="model">visa.application</field>
<field name="arch" type="xml">
<tree>
<field name="name"/>
<field name="age"/>
<field name="gender"/>
</tree>
</field>
</record>

7. Check on the UI.

odoo-creating-odoo-modules

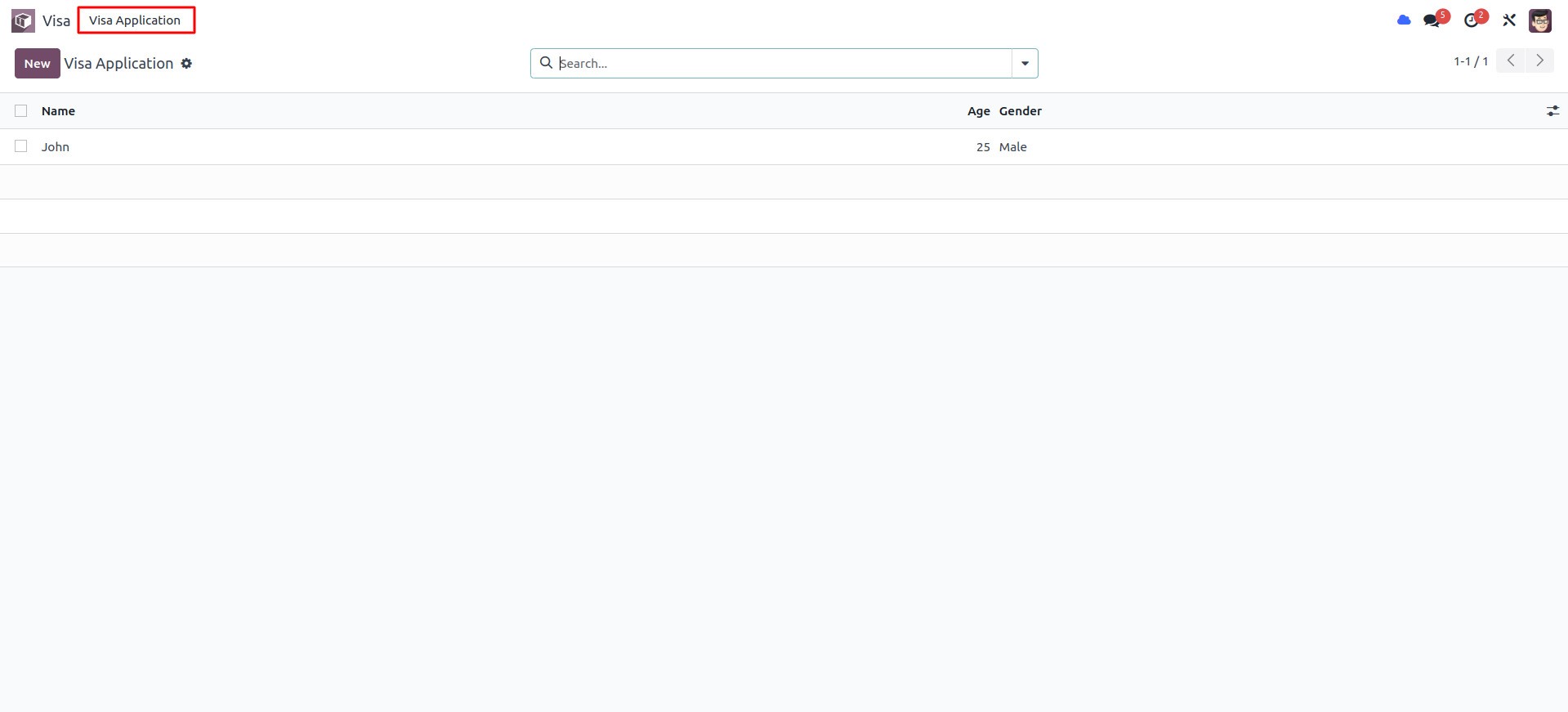

Hore we can see the newly created Visa Application menu.

odoo-creating-odoo-modules

The above image depicts the visa application form view.

odoo-creating-odoo-modules

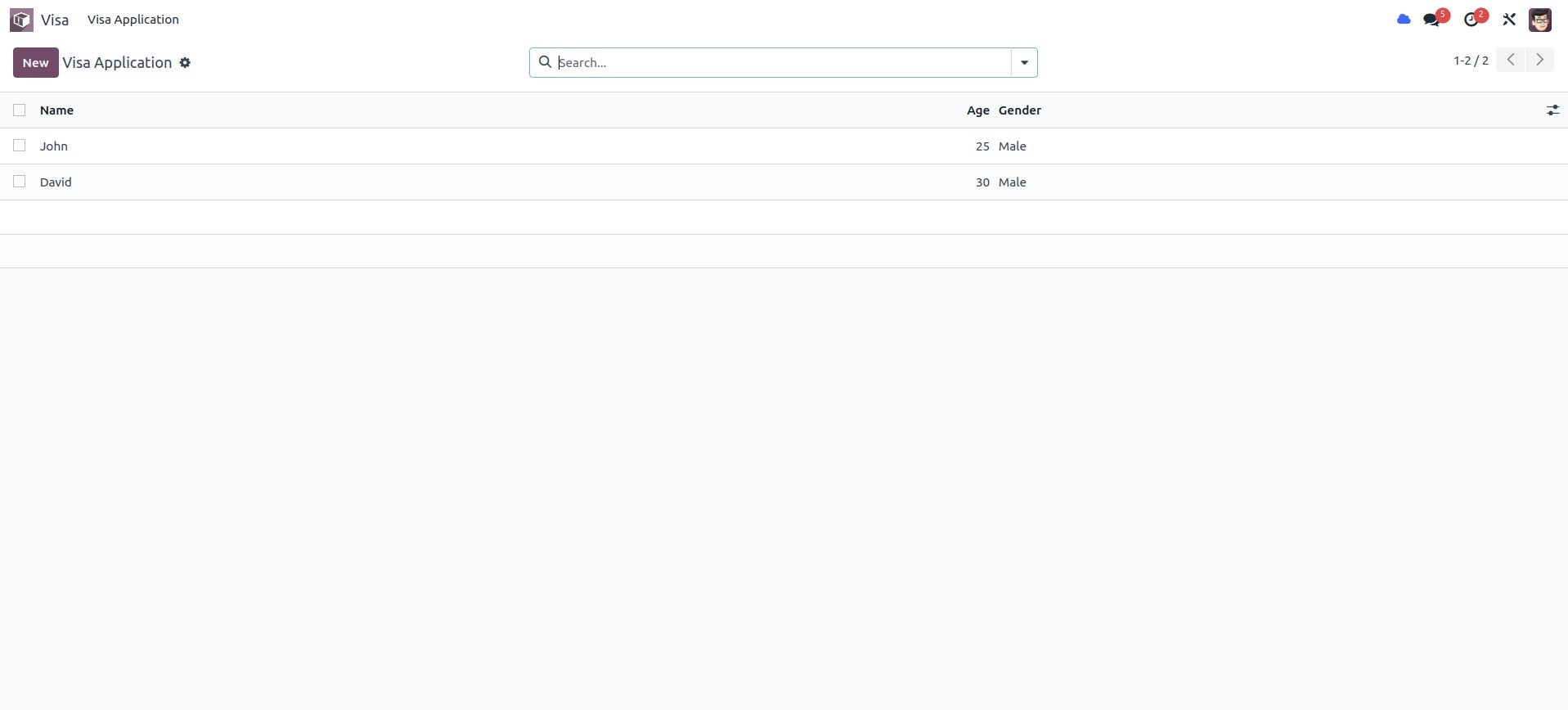

The above image depicts the visa application tree view.

Similarly, in Odoo, we can create menus, actions, and views.
